ROBUST CLAMP

GELENKBOLZENSCHELLEN ROBUST
ABRAZADERA ROBUST
COLLARI A BULLONE ROBUST

ROBUST CLAMP

Feature

  • The Robust clamp is a large, sturdy clamp designed to provide a secure and precise grip
    around heavy-duty hoses. An ideal clamp for situations requiring high tightening forces.
  • The clamp with its high strength 8.8 grade Hexagonal bolt can be tightened using
    various tools.
  • The clamp’s bevelled edges help protect the hose from potential damage.
  • For enhanced durability and security, the Robust clamp has three welding points.
  • The solid trunnions and product specific screws secure the necessary strength for all sizes.
  • The bolt is manufactured with integrated spacer – one piece less to take care.

Application
Robustness of clamp makes it ideal for use in agriculture, irrigation systems, drainage
systems, cooling solutions, and sludge suction systems.

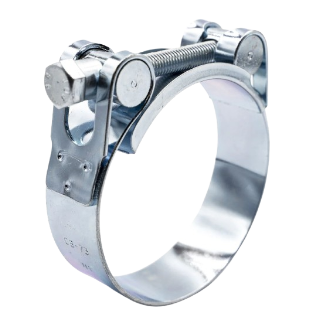

Image module
Quality:
  • W1
  • W2
  • W4
  • W5
Robust Clamp
DIA SIZE (mm) BANDWIDTH (mm) BOLT × LENGTH (mm) THICKNESS W1 (mm) THICKNESS W2 & W4 (mm) QUANTITY / BOX
17–1918M5 × 400.60.4200
20–2218M5 × 400.60.4200
23–2518M5 × 400.60.4200
26–2818M5 × 400.60.4200
29–3120M6 × 500.80.8100
32–3520M6 × 500.80.8100
36–3920M6 × 500.80.8100
40–4320M6 × 500.80.8100
44–4722M6 × 601.20.875
48–5122M6 × 601.20.875
52–5522M6 × 601.20.850
56–5922M6 × 601.20.850
60–6322M6 × 601.20.850
64–6722M6 × 601.20.850
68–7324M8 × 751.51.040
74–7924M8 × 751.51.030
80–8524M8 × 751.51.030
86–9124M8 × 751.51.030
92–9724M8 × 751.51.025
98–10324M8 × 751.51.025
104–11224M8 × 851.51.025
113–12124M8 × 851.51.020
122–13024M8 × 851.51.020
131–13926M10 × 951.51.025
140–14826M10 × 951.51.025
149–16126M10 × 1051.51.020
162–17426M10 × 1051.51.020
175–18726M10 × 1051.51.020
188–20026M10 × 1051.51.015
201–21326M10 × 1051.51.015
214–22626M10 × 1051.51.015
227–23926M10 × 1051.51.015
240–25226M10 × 1051.51.010
Custom Sizes Available

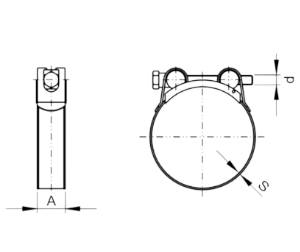

Technical Drawing:

Image module

Materials:

Materials
Description
Corrosion resistance
in salt spray testing
W1
Mild Steel with Zinc Plating
72 hours
W2
Stainless Steel 430 Band
Galvanized steel bolt and nut
72 hours
W4
Stainless Steel 304
400 hours
W5
Stainless Steel 316
1000 hours

Torques:

Image module
