SPIRAL POWERLOCK CLAMPS

Drahtschellen
Collier double fil
Draadslangklem
Abrazaderas en espiral doble tornillo
Fascette a Filo
Проволочные хомуты

Spiral Powerlock Clamp is a clamp designed for use in helix hoses. The clamp securely grips helical ribs around the spiral hose allowing for easy fitting on convoluted hoses.

The Tiger type spiral Clamp comes in clockwise and anti-clockwise orientation.

On use on Helix hoses a single Spiral Wire Powerlock Clamp allows adequate torque to replace 2 conventional clamps.

The Spiral double bolt clamp has a pair of hex nuts which allows for easy disassembly allowing clamp to be reused multiple times while providing a 360* vacuum seal.

Main Applications:  Used on helical hoses for fluid, food and slurry handling.

Image module
Quality:
  • W1
SPIRAL POWERLOCK CLAMP SIZES
Model Fits Hose ID
(in)
Dia Size
(mm)
Packing / Box
PC-37 1½” 37-50 100
PC-50 2" 50-65 100
PC-65 2½” 65-75 80
PC-75 3" 75-90 80
PC-100 4" 100-115 50
PC-125 5" 125-143 30
PC-150 6" 150-167 28
PC-200 8" 200-230 20
PC-250 10" 250-285 14
PC-300 12" 300-340 10
Available in Clockwise & Counter Clockwise Orientations

Pictorial View:

Image module

Materials:

Materials
Description
Corrosion resistance
in salt spray testing
W1
Mild Steel with Zinc Plated
Min 72 hours
Other products that you could be interested
Image module

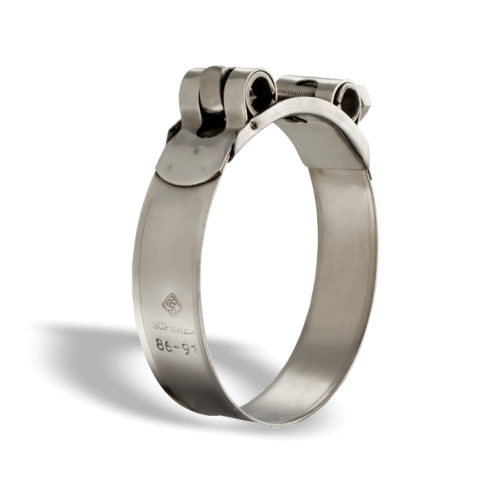

Super T-Bolt
Clamp
Image module

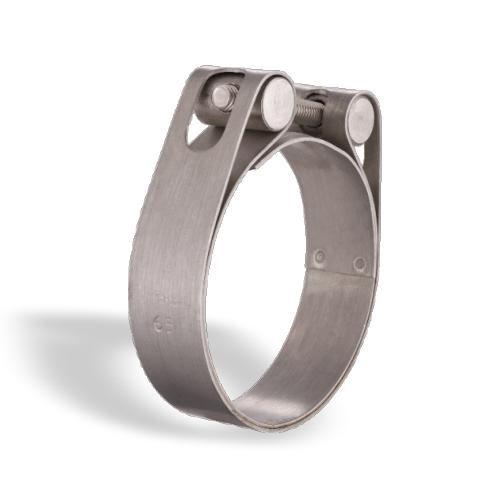

Superextra Single Bolt Clamp
Image module

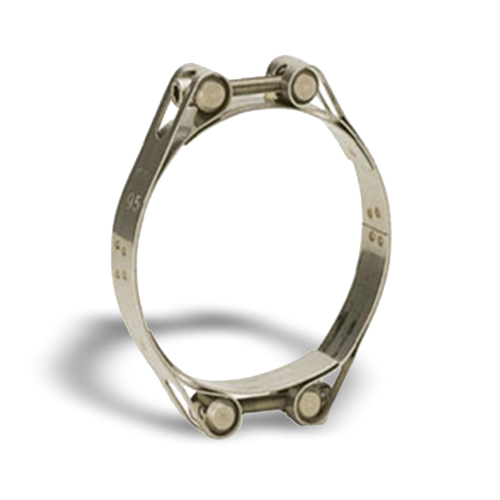

Superextra Double Bolt Clamp- SD
Image module
Superextra Double Bolt Clamp- D
Image module
BRS Wide Band
Clamp
Image module
S-TYPE Double Bolt Clamp
Image module
Strainers
Image module
Whipchecks
Image module
Handle for Slurry
Image module

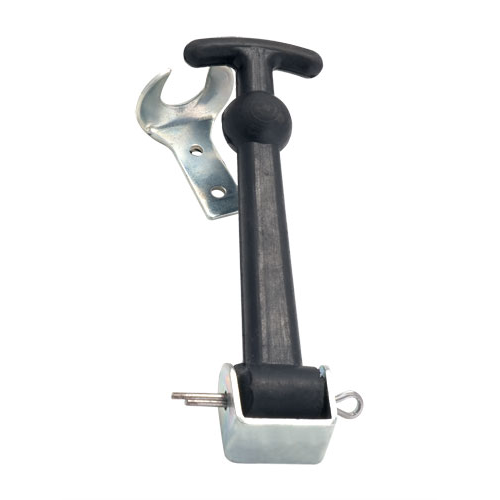

Bonnet Hook
